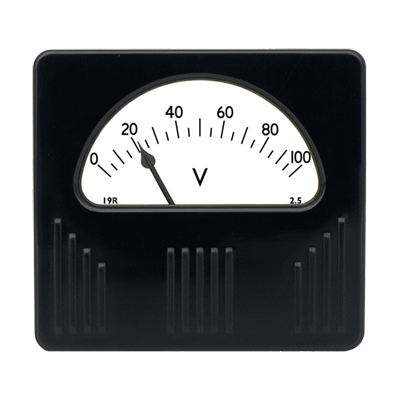

R19R

• Vintage Industrial analogue panel meter
• Type 19 body style
• Rectangular 46.3 x 42.3 mm bezel
• Suitable for 1U rack-mounted applications
• Front panel mounting with full bezel
• Rear panel stud fixings
• Transparent acrylic front
• High-impact rear body moulding
• Black ABS moulded bezel
• DC and AC industrial ranges available
• Taut band core magnet movement fitted as standard
• No calibration effect when mounted on a ferrous panel
• Rear zero adjuster as standard
• 6 mm tabs supplied as standard
• Threaded studs or flying leads available
• Internal LED illumination option
• Operating temperature: -25°C to +55°C

The Vintage analogue meter range was introduced by Sifam for applications requiring a more traditional, classically styled meter, as commonly seen on traditional consoles, rack-mounted units and panel-mounted equipment.

The range combines distinctive retro styling with contemporary construction and is designed to provide high performance at an affordable price. Vintage meters complement the proven Presentor series and are available in Industrial, Audio Level and Fast Response versions.

The range is available in four body styles: Type 15, Type 19, Type 20 and Type 20SQ. Depending on the model, options include AC and DC industrial ranges, Audio Level meters with VU scales and Fast Response meters with PPM scales.

All Vintage meters use a taut band core magnet movement as standard. The movement is suitable for portable or fixed applications and has no calibration effect when mounted on a ferrous panel. Stronger suspension options are available for Industrial versions.

Illumination options are available across the range, including internal LED illumination on selected models and rear festoon illumination on Type 20 and Type 20SQ versions.

Operating temperature: -25°C to +55°C
